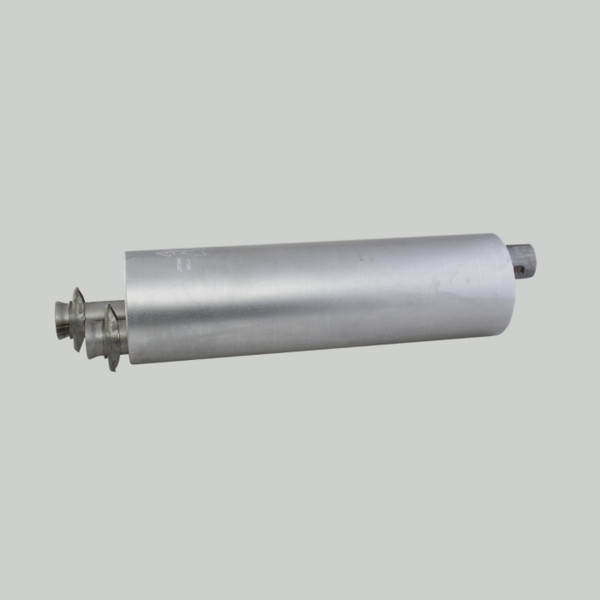

Product Overview
Attributes
Inlet Diameter 2.98 inch (75.69 mm)
Outlet Diameter 2.98 inch (75.69 mm)
Body Diameter Maximum 8.46 inch (214.88 mm)
Body Length 31.50 inch (800 mm)
Overall Length 38.97 inch (989.84 mm)
Rated Flow LR 671 cfm (19 m³/min)
Rated Flow MR 946 cfm (26.8 m³/min)
Rated Flow HR 1158 cfm (32.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Inlet Clock Position 6:00(2)
Outlet Clock Position 12:00
Style Style 2A
