Product Overview

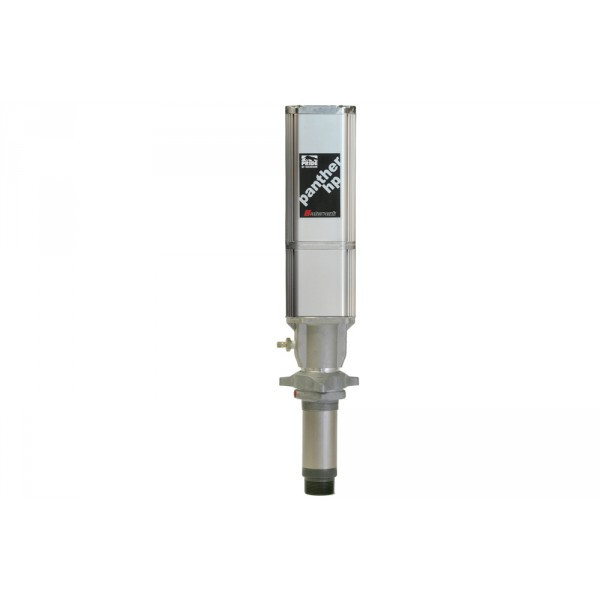

Balcrank Panther HP® 5:1 Pump w/ Bung Adapter - 1130-021
The New Panther Series 5:1 fluid pumps are setting new industry standards for the next millenium. Balcrank manufactures a
variety of time-tested, dependable pumps in a wide range of configurations to fit your application.
Includes hose kit (one 3’ x 3/8” ID tube, two spring clamps and one 1/8” threaded hose barb) for adapting the new pressure
relief system to any 1/8” ported bung adapter or return cap.
Features & Benefits
Built-in pressure relief
Double acting, true pump ratio
Balanced flow displacement
Positive trip air motor with thick wall housing and long stroke design
Enlarged flow passages
High performance check valves
Smooth, quiet operation
Used for distribution to 700 ft and up to 2 reel simultaneous service - low to medium usage
Specifications
Air motor bore: 3.49'
Eff. Diameter: 2.50"
Stroke: 3.25"
Operating air pressure range: 10-150 PSI
Air consumption: 5.7
Free flow GPM @ 100 PSI air: 5.4
Noise level range: 77-88 DbA
Max fluid stall pressure @ 150 PSI air: 770 PSI
Suction lift: 20
Air inlet NPT (F): 1/4"
Fluid inlet NPT (F): 1" (F) 1-1/2" (M)
Fluid outlet NPT (F): 1/2"
Cycles per gallon: 62
Wetted materials: Nickel plated steel buna stainless steel ultrathane carbon steel zinc plated steel nylon
