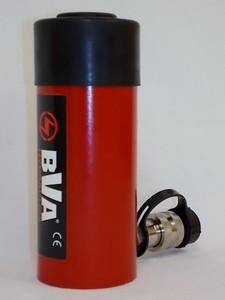

BVA Hydraulics H2504, 25 Ton Single Acting 4'' stroke 3/8'' NPTF

BVA Hydraulics H2504:  25 Ton Single Acting
4'' stroke
3/8'' NPTF
10,000 psi Working Pressure Hydraulic Ram
 25 ton Capacity
 Collapsed Height:  8.78"
 Extended Height:  12.72"

Features:
Internal Plunger Threads
Collar Fixture Threads
Two Base Mounting Holes
Maximum Working Pressure: 10,000 psi/ 700 bar
High strength steel construction
High-flow couplers
Collar Thread Protector
Rectangular Return Spring design results in even distribution of the load, eliminating Spring breakage and creating quicker retraction
Heavy duty, Heat Treated, Snap-in Grooved Saddles provides better Surface Traction during operation
Industrial Hard Chrome Plated Rod prevents Scratching and Corrosion
Rod Wiper Seals out Dirt and Contamination
Steel stop ring for rod over travel protection
Cylinders are burnish rolled for a smooth precision mirror finish, which reduces scoring and prolongs seal life
One piece Steel Rod Stopper for extra strength and prevents over travel
One piece High Grade Alloy Bearing for side load protection and long life
High Flow Ball Coupler provides more flow than conventional couplers
Polyurethane Cup Seal provides Optimum performance
