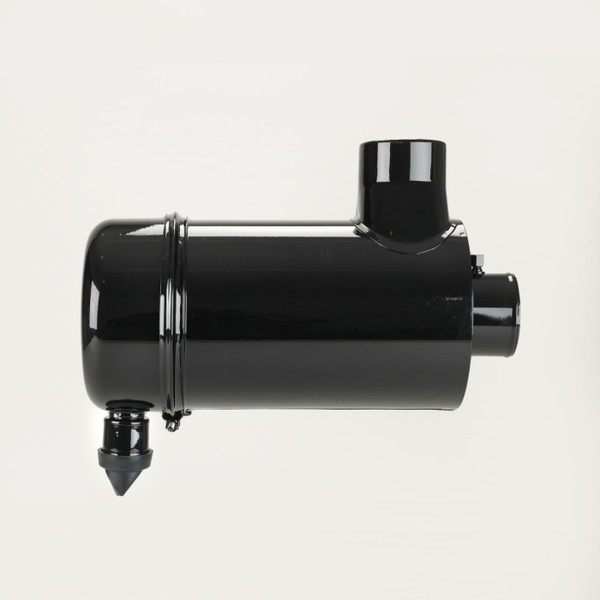

Product Overview
Attributes
Inlet Diameter 3.75 inch (95.2 mm)
Outlet Diameter 3.50 inch (88.9 mm)
Body Diameter Maximum 8.00 inch (203.2 mm)
Body Length 12.71 inch (322.8 mm)
Overall Length 18.30 inch (464.8 mm)
Rated Flow LR 198 cfm (5.6 m³/min)
Rated Flow MR 230 cfm (6.5 m³/min)
Rated Flow HR 254 cfm (7.2 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Radialseal
Family FRG
Brand RadialSeal™
