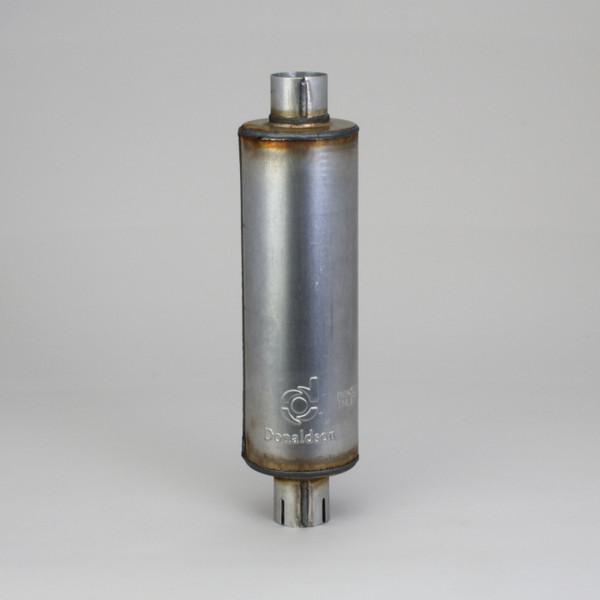

Product Overview
Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 2.02 inch (51.31 mm)
Outlet Diameter 2.12 inch (53.85 mm)
Body Diameter Maximum 4.37 inch (111 mm)
Body Length 12.50 inch (317.5 mm)
Overall Length 17.00 inch (431.8 mm)
Rated Flow LR 307 cfm (8.7 m³/min)
Rated Flow MR 434 cfm (12.3 m³/min)
Rated Flow HR 530 cfm (15 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 8 dBA
Attenuation HR 12 dBA
Style Style 1
