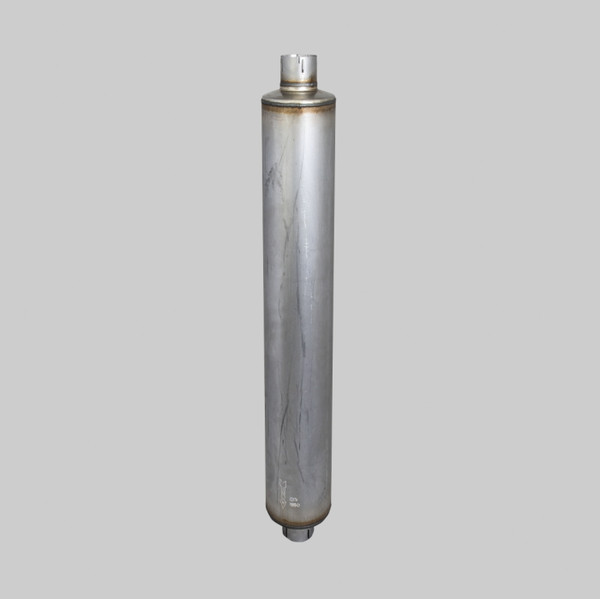

Product Overview
Attributes
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 8.50 inch (216 mm)
Body Length 34.37 inch (873 mm)
Overall Length 40.00 inch (1016 mm)
Rated Flow LR 1211 cfm (34.3 m³/min)
Rated Flow MR 1713 cfm (48.5 m³/min)
Rated Flow HR 2098 cfm (59.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Style Style 1
