Product Overview

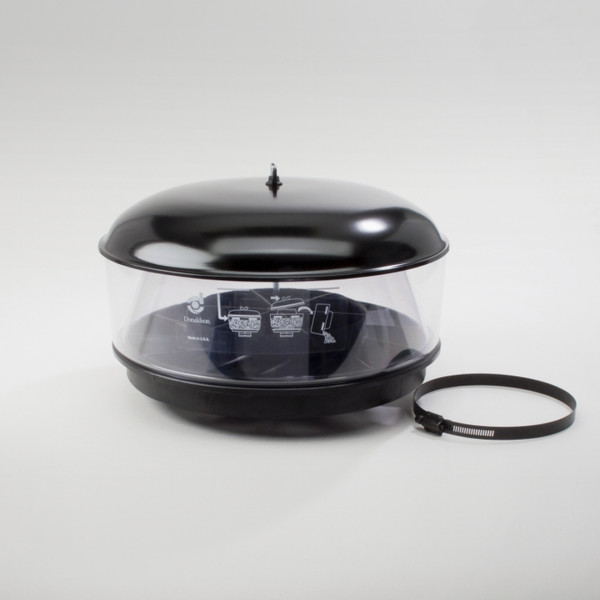

Why Choose Donaldson Full-View Pre-Cleaners?
• Full-View pre-cleaners help extend primary filter life by removing contamination before it reaches the filter.
• Centrifugal force in bowl separates up to 75% of incoming dust before it enters an engine air intake system.
• The Full-View pre-cleaner is cost effective, and easy to use.
• Full-View plastic bowl lets operator easily see when service is needed.
• One-bolt cover retention for easy service.
Attributes
Height 10.16 inch (258.1 mm)
Body Diameter Maximum 16.24 inch (412.49 mm)
Outlet ID 7.01 inch (178 mm)
Efficiency 75
Efficiency Test Std ISO 5011, SAE J726
Rated Flow HR 1501 cfm (42.5 m³/min)
Restriction LR 0.98 inch H2O (25 mm H2O)
Restriction HR 2.99 inch H2O (76 mm H2O)
