Product Overview

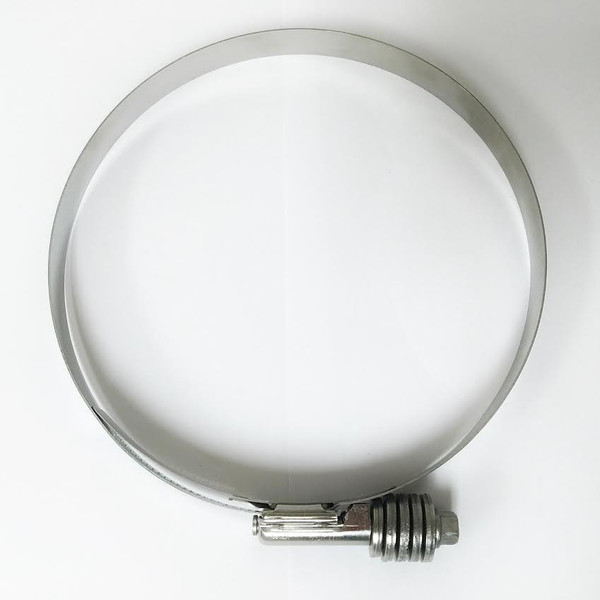

Size: 6.00" ID X 6.50"
Type: Constant Tension Clamp
Belleville spring and clamp construction is built to respond to constant temperature fluctuations.
The larger, heavy-gauge, precision formed springs provide higher rates of band tension and adjustment for a more dependable seal.
The inner liner protects against shearing of the hose surface. This type of clamp provides a uniform 360° seal.
FOR USE ON: COOLANT HOSE, HEATER HOSE, MARINE HOSE, AND
SILICONE TUBING.
Specifications:
• All stainless steel Constant Tension lined clamps
• Resists salt water and may be used in marine applications
Applications:
• Recommended for silicone coolant hose, heater hose, marine, and silicone tubing
COOLANT AND HEATER HOSE CLAMPING INSTRUCTIONS:
Worm gear or constant torque type stainless steel clamps with inner liner are recommended for silicone heater and coolant hose.
Initial clamp torque should be 40 inch-lbs. If re-torqueing is required, it should be limited to 20 inch-lbs.
Do not use serrated, slotted, or wire type clamps.
