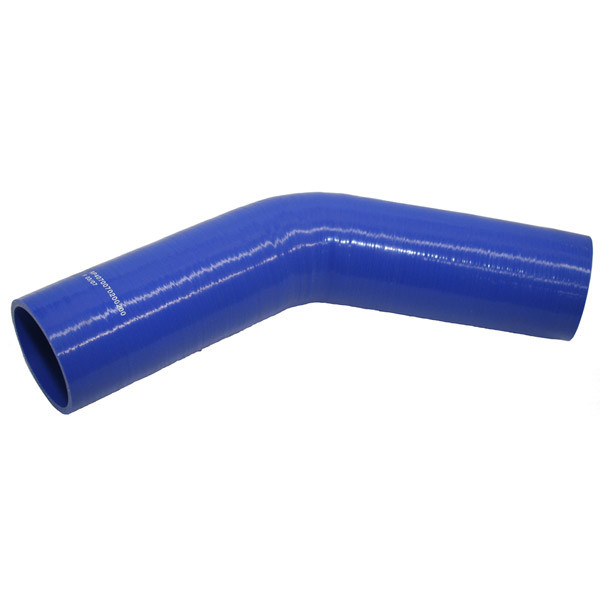

Product Overview
Size: 1.75" ID X 6.00" Legs
Material: Silicone
Color: Blue
FlexFab 7884 and 7896 series elbows serve a dual purpose.
Can be used as a coolant hose and
Can be used as a charge air connector (CAC)
Construction:
Silicone hose with 3-plies of Meta-Aramid Reinforcement
Specifications:
- Meets or exceeds the operating requirements of SAE J20 R1
- Meets or exceeds the operating requirements of TMC RP303B Class l Grade ll
- Temperature rage is -65°F (-54°C) to +500°F (+260°C)
- Custom Wall Thickness is .140"/.190"
Applications:
-For heavy duty pressure connections in hostile engine environments
- Resists hardening, cracking, cold leaks, aging, and many chemicals
- Ideal for extreme temperature and various pressure ranges where high performance levels are required
- For connection between the turbocharger and the engine
- Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment
