Product Overview
Inside Diameter: 3.50 inches
Outside Diameter: 3.92 inches
Burst Pressure PSI: 275
Max Neg PSI: 10
Bend Radius: 8.00 inches
Weight: 1.09 lb/ft

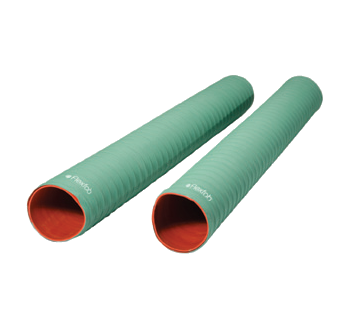

Green Cover, 2-Ply Polyester Reinforced Hose with Helical Wire
Flexfab’s wire reinforced coolant hoses are designed to handle vacuum and/or some forced curvature.
CONSTRUCTION:
• Silicone hose with 2 plies of Polyester Reinforcement, with Helical Wire
SPECIFICATIONS:
• Meets or exceeds the operating requirements of SAE J20 R2 Class A
• Temperature range is -‐65°F (-‐54°C) to +350°F (+177°C)
• Wall thickness at hose ends exclusive of wire gauge .130”/.180”
• Working pressure is 1/3 of the burst pressure
• Negative pressure is -‐10 PSI
