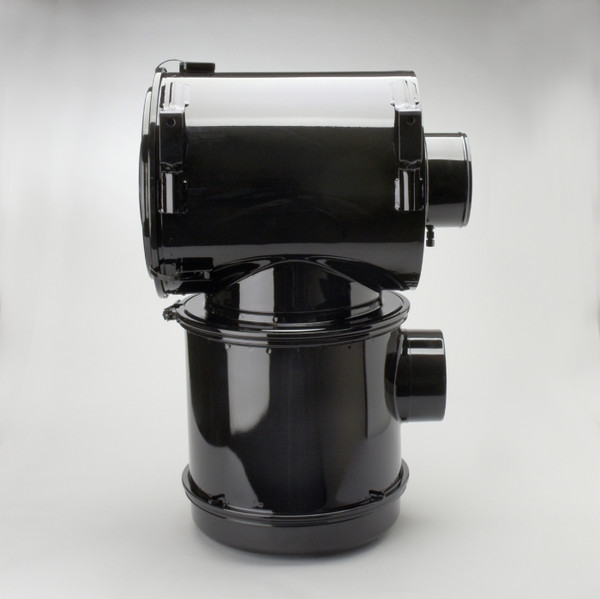

Product Overview
Attributes
Width 20.12 inch (511 mm)
Inlet Diameter 7.00 inch (177.8 mm)
Outlet Diameter 7.00 inch (177.8 mm)
Body Diameter Maximum 16.00 inch (406.4 mm)
Body Length 13.60 inch (345.44 mm)
Overall Length 26.31 inch (668.3 mm)
Rated Flow LR 915 cfm (25.9 m³/min)
Rated Flow MR 1063 cfm (30.1 m³/min)
Rated Flow HR 1201 cfm (34 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Tubular
Family STG
Brand Donaclone™
